HR-RFS2000 High-Performance Mechatronic L-band RF Switch

1 Device Overview

1.1 Features


● Low cost


● Very high linearity

○ up to 50dBm level


● Very low insertion loss

○ < 0.05dB below 2.25GHz

○ < 0.10dB below 3.25GHz

○ < 0.20dB below 4.75GHz


● High isolation

○ >40dB  below 2.0GHz

○ >35dB  below 3.5GHz

○ >30dB  below 5.5GHz


● High return loss

○ >18dB  below 2.25GHz

○ >16dB  below 2.75GHz

○ >12dB  below 4.5GHz


● switching-time for 2 port switch (SPDT)

○ < ~30ms


● Mechatronic - Shape Memory Alloy (SMA) actuated - electronic control

○ lightweight

○ small size

○ high reliability


● Small size envelope

○ footprint   7.5 x 5 mm


● LOW power consumption

○ ZERO except when switching

○ ~166μJ energy to switch

○ with  10% duty cycle

  - <1mW

○ with 100% duty cycle

  - <10mW



An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety critical applications, intellectual property matters and other important disclaimers.

PRELIMINARY DATA.

2 Projected Performance Data

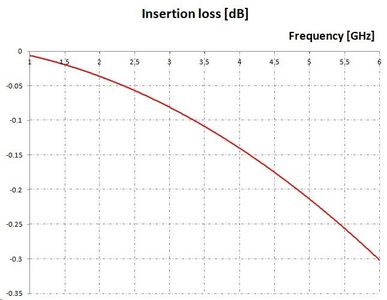

Insertion Loss vs Frequency

2.1 Insertion Loss vs Frequency

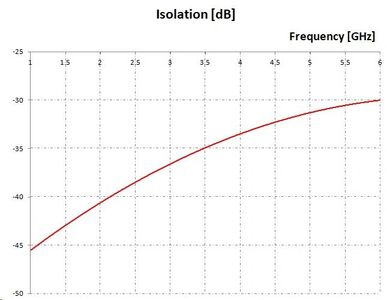

Isolation vs Frequency

2.2 Isolation vs Frequency

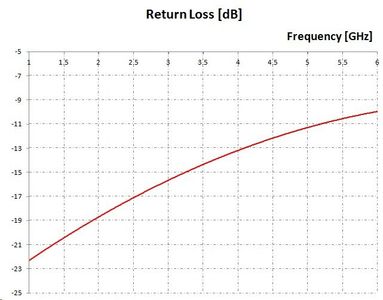

Return Loss vs Frequency

2.3 Return Loss vs Frequency

NOTES

1.



                                              IMPORTANT NOTICE


                                              PRELIMINARY DATA
